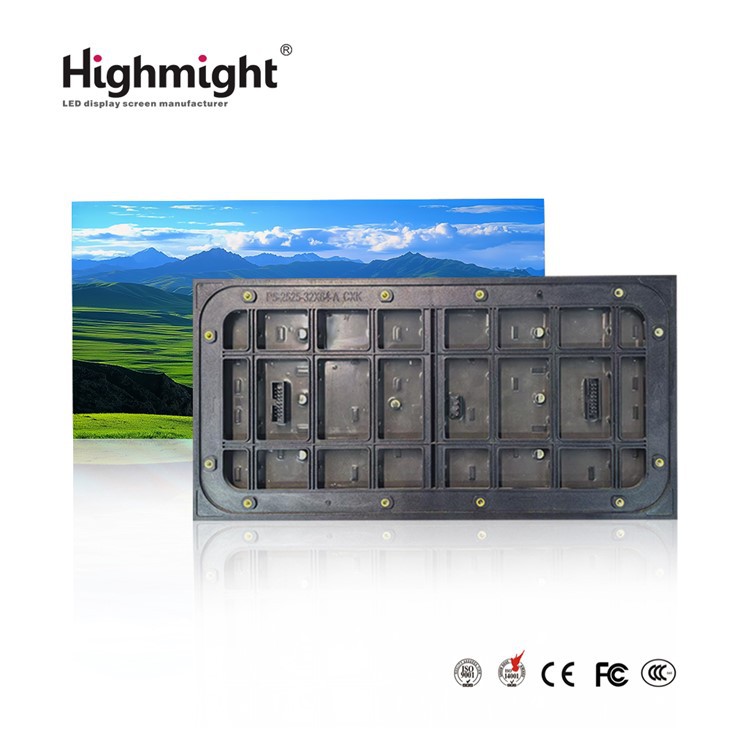

Kev daws kev ua haujlwm siab rau sab nraum zoov LED modules
Nyob rau hauv cov sib txawv ib puag ncig, cov teev ntawm cov neeg siab tshaj sab nraum zoov module koob txiav txim siab saib lub kaum ntse ntse thiab saib deb ntawm cov neeg tuaj saib. Qhov ntau dua qhov kev pom tseeb, cov ntsiab lus video ntxiv tuaj yeem tso tawm. Ntxiv rau, cov qauv tsim ntawm cov ntsiab lus tseem ceeb heev. Lub qhov muag liab qab parallax video "txiav" rau cov zaub tuaj yeem ua rau cov neeg tuaj yeem ua rau muaj kev sib txawv thiab sib tham sib.
Nta thiab kom zoo dua
Tus qauv ci ci tuaj yeem ncav cuag 5000,000CD / m², uas yog ntau dua li kev lag luam nruab nrab. Qhov no yog vim lub siab-ci loj loj-loj loj-loj loj nti Txawm hais tias lub hnub nyoog tsaus ntuj ci ntsa iab ncaj qha rau ntawm lub vijtsam, lub vijtsam ntsiab lus tseem pom tau tias pom sab nraum zoov lossis hauv ib puag ncig nrog lub hnub ci ncaj qha.
Cov cuab yeej siv tshuab cathode tsav tsheb siv, uas txuag tau ntau tshaj 25% lub zog piv nrog cov qauv uas tsav. Nws cov qauv tsim qauv yog ntau dua rau tshav kub dissipation:
Lub plhaub hauv qab yog ua los ntawm tuag-cam khwb cia xim nplaum nrog lub thermal conductivity txog li 200w / (mapa (mapa (map).
Cov cua sov dissipation qhov npaj txais yuav cov honeycomb tsim nrog thaj chaw nce los ntawm 30%.
Panilas tsim, ua kom sov ua cua sov dissipation, ua tau zoo tiv thaiv plua plav ntxiv.
Kev tiv thaiv zoo li cov tub rog
Tus qauv muaj tus qauv tsim nrog peb qib ntawm kev tiv thaiv:
Pem Hauv Ntej Kev Tiv Thaiv: Ib daim npog qhov ncauj uas yog 3mm tuab thiab muaj qis qis dua los txiav rau ntawm kev cuam tshuam thiab khaws cia khoom ntawm kev tsoo nws.
Kev tiv thaiv nyob rau hauv nruab nrab: Peb hom kev tiv thaiv cov xim tiv thaiv kab yees muaj nyob rau ntawm PCB Board: Ib qho uas ua rau muaj dej noo tawm, ib qho uas ua rau muaj kev npau taws, thiab ib qho uas ua rau cov tshuaj tsuag ntsev los ntawm kev tshwm sim. Cov Thawj Coj tau dhau 48-teev ntsev tshuaj tsuag.
Rov qab tiv thaiv: Silicone sealing nplhaib thiab tsis siv neeg lub kua nplaum sau cov txheej txheem kom ntseeg tau tias lub nraub qaum.
Sib nqus kev teeb tsa: txhua tus qauv suav nrog 16 built-in ndfeb hlau nplaum, txhua tus nrog lub zog sib nqus ntawm 2500gs. Qhov no ua rau nws yooj yim tso ua ke thiab nqa tawm sai sai.
Kev tsim kho rau pem hauv ntej txij nkawm: koj tsis tas yuav nqa lub thawv sib hloov pauv hloov pauv, uas txuag tau 90% ntawm lub sijhawm txij nkawm.
Lub kaw lus kom tsis txhob ntog: kev nyab xeeb txoj hlua ua los ntawm cov hlau tsis muaj zog nrog lub zog tensile ntau dua 50 kg yog suav nrog txhua tus qauv.
Modular interface: Hub75 muaj ib lub tswv yim thiab ib qho tso zis teeb liab interface thiab tej zaum yuav kub swapped.
Cov lus qhia
|
LED Sab Nraud Module MH-Series (ph2-Phos5) |
|||||
|
Module qauv (hli) |
MH-A 2 |
MH-a 2.5 |
MH-A 3 |
MH-a 4 |
MH-A 5 |
|
Module taw tes spacing (mm) |
2 |
2.5 |
3.076 |
4 |
5 |
|
Module qhov loj me (hli) |
320x160 |
320x160 |
320x160 |
320x160 |
320x160 |
|
Module Pixel |
80x80 |
128x64 |
104x52 |
80x40 |
64x32 |
|
Qhov ceev dua pixels (dot / ㎡) |
250000 |
160000 |
105625 |
62500 |
40000 |
|
Teeb loj leeb qauv |
SMD1211 |
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
|
Ci ntsa iab (CD / ㎡) |
4999 |
5000 |
5000 |
4000 |
5500 |
|
Refresh tus nqi (HZ) |
1920/3840 |
1920/3840 |
1920/3840 |
1920/3840 |
1920/3840 |
|
Nqus hom |
1/5Sweep |
1/1weep |
1 / 13Sweep |
1 / 10weep |
1 / 8weep |
|
Module Qhov hnyav (kg) |
0.15 |
0.28 |
0.28 |
0.28 |
0.28 |
|
Module Thickness (hli) |
15.6 |
15.6 |
15.6 |
15.6 |
15.6 |
|
Teeb ua hauj lwm lub neej |
Ntau dua los yog sib npaug rau 100,000 teev |
||||
|
Pixel muaj pes tsawg leeg |
RGB 3-hauv-1 |
||||
|
Grayscale |
14BUM |
||||
|
Lub zog siab tshaj plaws (w / ㎡) |
1000-1200W |
||||
|
Cov Hwjchim (W / ㎡) |
400-600W |
||||
|
Tshem tawm Ghosting |
Cuab tam |
||||
|
Kev tawm tswv yim voltage |
AC100-240V 50 / 60HZ |
||||
|
Module Inpor Voltage |
DC4.7V ± 0.2V |
||||
|
Huab cua |
Qhov Kub -10-40 Txheej Txheem Vuam 10% -90% |
||||
|
LED Sab Nraud ModuleTus mH-Series (ph5-Phos10) |
|||||
|
Module qauv (hli) |
MH-A 5 |
MH-A 6 |
MH-A 8 |
MH-A 10 |
MH-A 10 |
|
Module taw tes spacing (mm) |
5 |
6.67 |
8 |
10 |
10 |
|
Module qhov loj me (hli) |
320x160 |
320x160 |
320x160 |
320x160 |
320x160 |
|
Module Pixel |
64x32 |
48x48 |
40x20 |
32x16 |
32x16 |
|
Qhov ceev dua pixels (dot / ㎡) |
40000 |
22477 |
15625 |
10000 |
10000 |
|
Teeb loj leeb qauv |
SMD2727 |
SMD3535 |
SMD3535 |
SMD3535 |
SMD3535 |
|
Ci ntsa iab (CD / ㎡) |
5500 |
6000 |
5500 |
4000 |
5800 |
|
Refresh tus nqi (HZ) |
1920/3840 |
1920/3840 |
1920/3840 |
1920/3840 |
1920/3840 |
|
Nqus hom |
1 / 8weep |
1/59WEPR |
1/5Wepree |
1/5WEEP |
1/2Sweep |
|
Module Qhov hnyav (kg) |
0.28 |
0.28 |
0.28 |
0.28 |
0.28 |
|
Module Thickness (hli) |
15.6 |
15.6 |
15.6 |
15.6 |
15.6 |
|
Teeb ua hauj lwm lub neej |
Ntau dua los yog sib npaug rau 100,000 teev |
||||
|
Pixel muaj pes tsawg leeg |
RGB 3-hauv-1 |
||||
|
Grayscale |
14BUM |
||||
|
Lub zog siab tshaj plaws (w / ㎡) |
1000-1200W |
||||
|
Cov Hwjchim (W / ㎡) |
400-600W |
||||
|
Tshem tawm Ghosting |
Cuab tam |
||||
|
Kev tawm tswv yim voltage |
AC100-240V 50 / 60HZ |
||||
|
Module Inpor Voltage |
DC4.7V ± 0.2V |
||||
|
Huab cua |
Qhov Kub -10-40 Txheej Txheem Vuam 10% -90% |
||||
Chaw thov
Cov Ntaub Ntawv Kev Loj Tshaj Tawm System
P5 Cov Ntaub Ntawv Sib Txawv Sib Txawv Pab Pawg Peb tau muab rau txoj kev loj:
Nplai: Tag nrho cov ntawm 86 Cov duab ntxaij vab tshaus, nrog tag nrho thaj chaw ntawm ntau dua 1,200 square meters
Cov Kev Tshwj Xeeb: Anti-Glare, Kev paub ntev ntev (pom kev deb li 300 meters)
Kev daws: customized siab loj-sib piv dub npog qab npog + Tsis siv neeg kaj lug hloov kho lub cev
Operation data: It has been running continuously for 3 years, with an average failure-free time of >8,000 teev
Liab qab-qhov muag 3D loj screen rau hauv nroog lag luam
P4 Sab nraum zoov LED Project rau lub chaw lag luam:
Kev Sib Tw: ARC Spricing (Radius 15 metres 15 metres) + Siab siab ua haujlwm siab yuav tsum muaj
Kev daws tshiab: Saj zawg zog pcb mos module + patented arc stericing qauv
Cov nyhuv pom: Refresh tus nqi 4200Hz, Grayscale 14bit, kev txhawb nqa zoo meej rau 8k video
Cov qhua tuaj noj mov cov tswv yim: nruab nrab txhua hnub tus neeg caij tsheb khiav nce los ntawm 18%, ua ib qho kev tshawb xyuas nrov-hauv lub nroog.
Chaw nres nkoj Terminal Sab Nrauv Tshaj Tawm Tshaj Tawm
Ningbo Zhoushan Port P6 puv xim LED Zaub Screen:
Kev Nyuaj Siab Ib Cheeb Tsam: Muaj Ntsev Siab Ntshav Huab Qog, Muaj Zog Typphoon Huab Cua
Kev txhawb nqa tsim: Stainless hlau fasteners + peb-pov thawj xim ntxiv kev kho
Kev ua haujlwm: kev sib txig sib luag ntau Typphoon (siab tshaj cua ntaus nqi 14), tus qauv yog lawm
Cov Nyiaj Pab Nyiaj Txiag: Cov neeg siv khoom lag luam tshaj tawm cov nqi hauv 9 lub hlis
Cov Kev Pab Zoo Siab
Kev tsom xam ntawm cov neeg siv khoom xav tau
Saib mus rau hauv yuav ua li cas cov neeg siv khoom siv cov khoom lag luam thiab yam lawv xav tau tshwj xeeb yog raws lawv kev lag luam.
Qhia cov piv txwv ntawm cov txiaj ntsig zoo-3D cov txiaj ntsig thiab nws cov txiaj ntsig.
Kev tsim qauv ntawm kev daws teeb meem
Qhia qhov screen screen thiab daws teeb meem zoo raws qhov chaw uas nws yuav muab ntsia rau qhov twg nws yuav ntsia, lub teeb ntau npaum li cas nyob hauv chav, thiab yuav ua li cas tus saib yuav saib nws.
Muab cov neeg xaiv cov kev xaiv sib txawv ntawm cov ntxaij vab tshaus.
Ua kom zoo tshaj 3D Parallax nyhuv kom cov neeg tuaj yeem pom cov teebmeem tiag tiag los ntawm txhua qhov kev nkag siab.
Pab nrog cov teeb meem kev ua haujlwm thiab cov lus qhia
Ib qho kev taw qhia meej rau cov hauv paus ntawm cov thev naus laus zis 3D thev naus laus zis.
Teb cov lus nug txog kev ua cov ntsiab lus, ua kom nws ua haujlwm nrog lwm yam, thiab cov cuab yeej koj xav tau.
Qhia cov sijhawm thiab tus nqi kwv yees rau txoj haujlwm.
Kev Ua thiab Kuaj Cov Khoom
Nruj me ntsis ua rau liab qab 3D zaub panels raws li cov neeg siv khoom xav tau thiab khiav tag nrho cov kev ntsuam xyuas ntawm lawv.
Xa cov ntawv lees txais cov khoom lag luam kom paub tseeb tias kev ua tau zoo ua tau raws li tus neeg yuav xav tau.
Teeb tsa thiab kho
Ntiav ib lub tuam txhab txawj ntse los nruab nws rau ntawm qhov chaw kom paub tseeb tias lub vijtsam muaj kev nyab xeeb thiab ruaj khov.
Nco ntsoov tias cov lej parallax thiab cov nyhuv nthuav tawm yog ua haujlwm zoo rau qhov zoo tshaj plaws saib kev paub.
Muab ntau cov ntsiab lus teeb tsa cov kev xaiv los qhia yuav ua li cas thiaj ua 3d cov teebmeem uas koj tuaj yeem pom nrog lub qhov muag liab qab.
Kev cob qhia kev ua haujlwm
Kev cob qhia rau cov neeg siv khoom siv rau kev siv cov khoom siv, xa cov khoom, thiab tswj hwm nws.
Caw cov neeg siv kev qhia lossis cov lus qhia rau cov cuab yeej los pab lawv ua 3D tso cov ntsiab lus.
Pab nrog cov teeb meem kev ua haujlwm thiab teeb meem
Muab kev txhawb nqa 24 teev nyob rau ib hnub, 7 hnub hauv ib lub lis piam kom muaj teeb meem sai sai.
Pab los ntawm qhov deb lossis xa cov engineers txhawm rau txhim kho cov khoom ntawm thaj chaw.
Kev hloov kho vajtse thiab software
Tsis tu ncua cov kev hloov tshiab rau kev tswj tshuaj ntsuam lossis cov software tswj software.
Muab cov kev pabcuam los txhim kho kho vajtse.
Warranty thiab upkeep
Lub sijhawm lav feem ntau yog ob rau peb xyoos, thiab lub sijhawm no, qhov tsis xws luag lossis hloov dawb.
Qhia cov kev pabcuam tu tau, xws li tu lub vijtsam, kuaj qhov kev ua tau zoo, thiab tawm tswv yim los txhim kho cov khoom siv.
Pab nrog cov ntaub ntawv thiab cov lus taw qhia
Txheeb xyuas cov ntaub ntawv cov ntaub ntawv ntawm yuav ua li cas tib neeg siv lawv cov screens.
Tau txais tswv yim los ntawm cov neeg yuav khoom thiab ua kom koj cov khoom lag luam thiab cov kev pabcuam zoo dua.
Daim ntawv muaj cai
Cov FAQ
Q: Dab tsi yog sab nraum zoov Led Module?
A: LED sab nraum zoov cov qauv yog teeb pom kev zoo lossis cov cuab yeej teeb coj tawm hauv cov ntxaij vab tshaus LED hauv cov ntxaij vab tshaus LED Lawv muaj cov yam ntxwv ntawm lub teeb ci siab, waterproofness thiab av av.
Q: Kuv yuav ua li cas tau mloog thaum txhim kho coj sab nraum zoov modules?
A:
Kev kho dej tsis zoo: Xyuas seb cov sealing roj hmab nplhaib yog lawm thiab xyuas kom meej tias tsis muaj qhov sib txawv ntawm cov pob qij txha ntawm lub thawv.
Kev sib txuam fais fab: Siv lub zog dej tsis muaj zog nrog lub voltage ruaj khov (xws li DC5V / 12V).
Thaum tshav kub dissipation thiab qhov cua: zam kev teeb tsa hauv qhov chaw kaw cia thiab muab pov tseg kom sov sov dissipation raws.
Q: Yuav ua li cas kom huv Swedor sab nraum zoov cov qauv?
A:
Tom qab lub hwj chim tawm, siv cov txhuam hniav muag lossis siv phom los tshem cov hmoov av los ntawm saum npoo.
Cov tawv ncauj tsuas tuaj yeem so nrog lub xab npum nruab nrab (xws li dej cawv), thiab cov kuab tshuaj uas muaj xeb.
Q: Kuv yuav ua li cas yog tias cov dej tau nkag mus rau hauv module?
A:
Txiav tawm lub zog tam sim ntawd, tshem tawm cov module thiab qhuav nws.
Txheeb xyuas seb cov sealing roj hmab ntiv nplhaib yog kev laus, thiab hloov lossis kho nws yog tias tsim nyog.
Q: Lub neej yog dab tsi ntawm LED Modules?
A:
Feem ntau 50,000 ~ 100,000 teev (nyob ntawm kev siv kev pab thiab cua sov dissipation tsim).
LIFESPAN TAS NRHO thaum ci ntsa iab sau txog 50%.
